Product Type

BEM fixed tube sheet type /AES/BES Floating head type/BEM-U-shaped tube type heat exchanger /AFP Double shell pass packed box type heat exchanger /AKT/AKU reboiler.

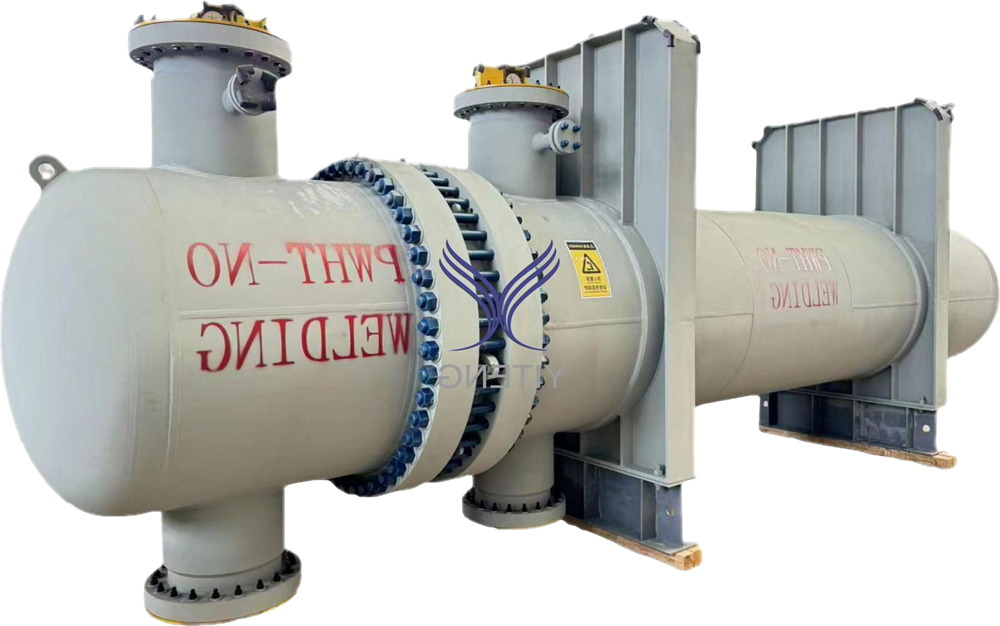

Shell and tube heat exchanger

Heat exchanger is a kind of equipment used to realize the heat transfer from one kind of fluid to another, which is widely used in many fields such as chemical industry, petrochemical industry, pharmaceutical industry, food processing, energy and so on.

Shell-and-Tube Heat Exchanger is currently the most widely used and technologically mature heat exchanger in the industrial field.

1. KEY STRUCTURE

2. MAIN TYPES AND FEATURES

3. HIGHLIGHTS ON PERFORMANCE

· High-efficiency heat transfer: multiple tubes in parallel + folded plate design, heat transfer coefficient 600-8000 W·m⁻²·K⁻¹.

· Pressure and temperature resistance: design pressure 0.6-4.0 MPa; temperature -20 ℃~600 ℃ (titanium alloy customized)

· Flexible materials: shell/tube bundle can be selected from carbon steel, 304/316L, titanium, Hastelloy, copper-nickel, etc.,

   to adapt to strong acids and alkalis, salt spray and other corrosive media

· Convenient maintenance: floating head and U-tube can be extracted as a whole to realize online mechanical cleaning.

· Economy and durability: modular design, life time≥ 10 years, low comprehensive operating costs

4. QUICK REVIEW OF PARAMETERS

5. TYPICAL APPLICATION

6. SELECTION AND MAINTENANCE ADVICE

SELECTION:

• Large temperature difference → floating head type; small temperature difference → fixed tube and plate type
• Easy fouling on shell side → floating head or U-tube
• Corrosive media → 316L, titanium or Hastelloy

MAINTENANCE:

• Regular chemical cleaning or mechanical through the ball;
• Monitor pressure drop and temperature difference to detect leakage or blockage

NOTES:

For quick quotation or process calculation, it is recommended to provide: name of medium, inlet and outlet temperature/pressure, flow rate, corrosivity and installation space limitation, YITENG pressure vessel can be completed within one week of the selection and layout.
